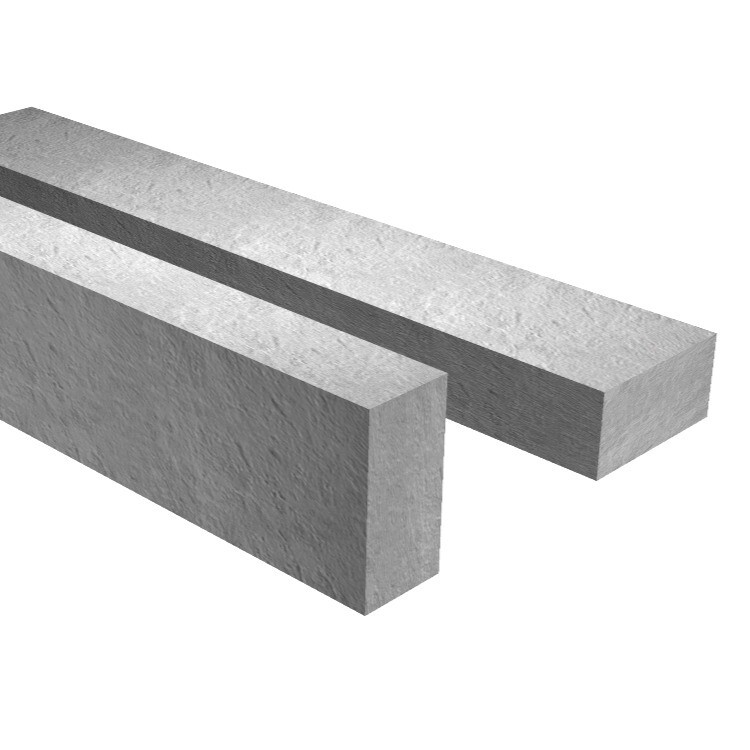

Pre-Stressed Concrete Lintel 100mm x 65mm
Product Details
PRESTRESSED PREMIUM LINTELS
PRESTRESSED PREMIUM LINTELS AND PADSTONES FOR STRENGTH AND VALUE.
The prestressed premium range is the only concrete lintel to have been awarded a BSI Kitemark. It also includes a high-strength option where there are exceptional load requirements.
Featuring the Supreme superior concrete technology – both precast and prestressed lintels are manufactured with a textured finish. A range of complementary Padstones is available to provide the perfect support for your Supreme lintels.
Manufactured in accordance with EN 845-2:2013.
Loading Guide:The loads on the lintels are assessed in accordance with the method described in Eurocode 2 EN 1992-1-1-:2004, EN 1990, EN 1991-1-1.
Load table can be found under Resources.
Installation:
- Ensure the lintel is not damaged.
- The lintel should be installed with a minimum end bearing of 150mm.
- Ensure the lintel is used in its correct orientation and is fully bedded in a level position on mortar across its length and width.
- The masonry below the lintel should be built in accordance with EN 1996-1-1.
- Where required in external walls a flexible damp proof course or cavity tray shall be installed in accordance with current building regulations.
- If required rendering of the lintel is not deemed to be detrimental to its performance.
- Do not cut into the lintel to form rebates or modify in any way , if in doubt please contact our technical department.
