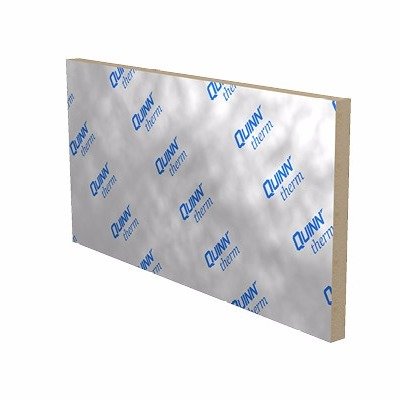

Quinn Therm QF PIR Insulation
Quinn Therm QF PIR Insulation is a high performance, fibre free board, with a rigid thermoset insulation core and faced on both sides with a low emissivity composite foil facing.
The high compressive strength of Quinn Therm QF enables it to withstand the dead and imposed loads transmitted through the floor.
Quinn Therm QF is suitable for new build and refurbishments projects in both domestic and commercial build. With specific properties that optimise the performance of underfloor heating.
For suspended timber floors in particular, Quinn Therm QF reduces heat loss by an air infiltration method, making it the ideal solution for upgrading the thermal performance of existing floors.
Specification
- Low thermal conductivity, minimising the thickness required to achieve the design U-value.
- Certified under BBA certificate number 07/4444 and IAB certificate number 05/0223
- Available as a BIM object
- Zero ozone depletion potential (zero ODP) and low global warming potential (GWP)
- Achieves an A+ rating when compared to the BRE Green Guide.
Performance & Properties
- Board size (mm)1200 x 2400
- Thickness (mm)25mm – 150mm
- Thermal Conductivity (λ)0.022w/mk
- FacersLow emissivity foil facers
- Core water vapour resistivity≅300MNs/gm
- Compressive strength>150kPa
***THIS ITEM IS FOR COLLECTION OR NEXT DAY DELIVERY WITHIN 8 MILES OF PL5 3LR ONLY***
IF DELIVERY IS REQUIRED OUTSIDE THIS AREA PLEASE CONTACT US ON 01752 751136
