For masonry cavity walls
Performance
Thermal
Earthwool DriTherm Cavity Slabs have thermal conductivities ranging from 0.032 to 0.037 W/mK.
Fire
Earthwool DriTherm Cavity Slabs are classified as Euroclass A1 to BS EN 13501-1.
Description

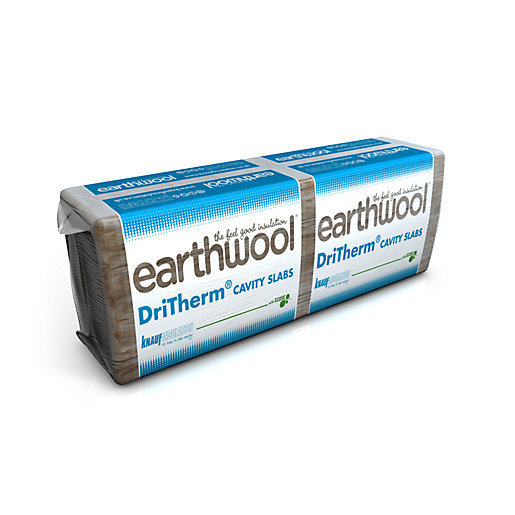

Earthwool DriTherm Cavity Slabs are semi-rigid slabs of non-combustible, water repellent, glass mineral wool. They are 455mm wide to suit standard vertical wall tie spacings, ensuring a closed joint with adjacent slabs.
| Thickness (mm) | Thermal conductivity (W/mK) | Thermal resistance (m2K/W) | Length (mm) | Width(mm) | Slabs per Pack | Area per Pack (m2) |
|---|---|---|---|---|---|---|
| 100 | 0.037 | 2.70 | 1200 | 455 | 12 | 6.55 |
Benefits
- British Board of Agrément approved for use in all exposure zones
- Excellent thermal and fire performance
- Water repellent
- Slabs ‘knit’ together, thus eliminating air gaps between adjacent slabs
Application
Earthwool DriTherm Cavity Slabs are for the thermal insulation of masonry cavity external walls and are installed to fully fill the cavity. They are approved for use in buildings up to 12m high in any exposure zone and for use in multi-storey applications up to 25m in height.
Environmental
Earthwool DriTherm Cavity Slabs represent no known threat to the environment and have zero Ozone Depletion Potential and zero Global Warming Potential.
ECOSE® Technology
Knauf Insulation mineral wool products with ECOSE® Technology benefit from a no added formaldehyde binder, which is up to 70% less energy intensive than traditional binders and is made from rapidly renewable bio-based materials instead of petroleum-based chemicals.
The technology has been developed for Knauf Insulation’s glass and rock mineral wool products, enhancing their environmental credentials without affecting the thermal, acoustic or fire performance. Insulation products made with ECOSE Technology contain no dye or artificial colours.
- Additional(active tab)
Standards
Earthwool DriTherm Cavity Slabs are manufactured in accordance with BS EN 13162, ISO 50001 Energy Management Systems, OHSAS 18001 Occupational Health and Safety Management Systems, ISO 14001 Environmental Management Systems, and ISO 9001 Quality Management Systems, as certified by Bureau Veritas.
Durability
Earthwool DriTherm Cavity Slabs are odourless, rot proof, non-hygroscopic, do not sustain vermin and will not encourage the growth of fungi, mould or bacteria.
Moisture resistance
Tests by the British Board of Agrément confirm that Earthwool DriTherm Cavity Slabs will not transmit water to the inner leaf. Nor will they transmit moisture by capillary action across the cavity or from below damp proof course level.
Vapour resistivity
Earthwool DriTherm Cavity Slabs offer negligible resistance to the passage of water vapour and have a water vapour resistivity of 5.00MNs/g.m.
Guarantee
Earthwool DriTherm Cavity Slabs are guaranteed* for 50 years to resist the transmission of liquid water from the outer masonry leaf to the inner masonry leaf in new cavity walls and to have a thermal conductivity of 0.032 to 0.037 W/mK at normal building temperatures
*Available by application to Knauf Insulation Ltd
Certification
Earthwool DriTherm Cavity Slabs are certified by British Board of Agrément Certificate 95/3212. Approval can be sought from Knauf Insulation Ltd and the British Board of Agrément for Earthwool DriTherm Cavity Slab’s use in buildings over 25m high.
Handling and storage
Earthwool DriTherm Cavity Slabs are easy to handle and install, being lightweight and easily cut to size, where necessary. They are supplied in polythene packs which are designed for short term protection only. For longer term protection on site, the product should either be stored indoors, or under cover and off the ground. Earthwool DriTherm Cavity Slabs should not be left permanently exposed to the elements.
